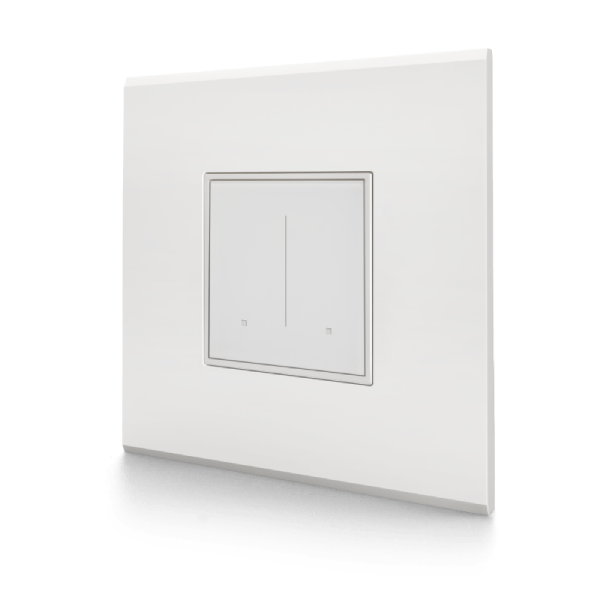

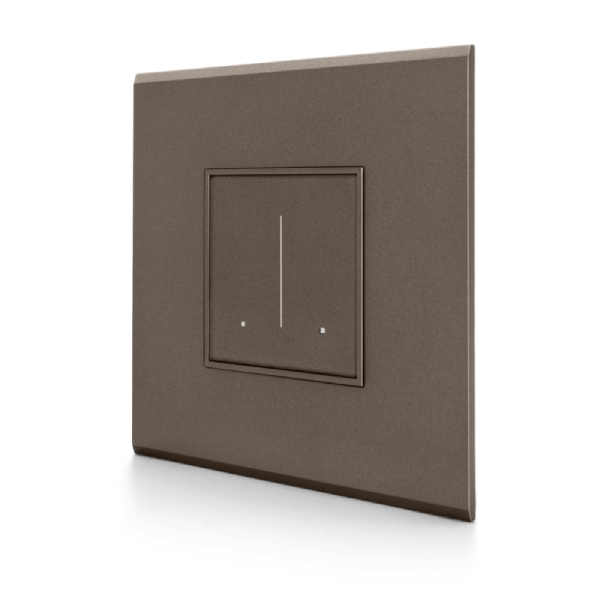

MOD-2 MOD-2
MOD-2 MOD-2
MOD-2 MOD-2

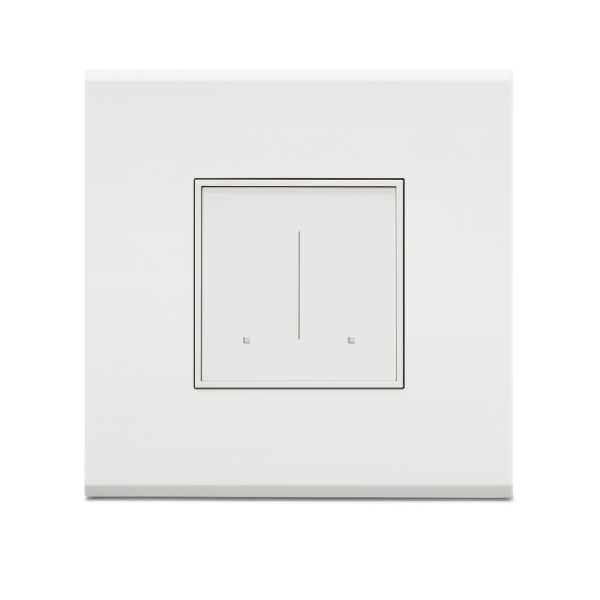

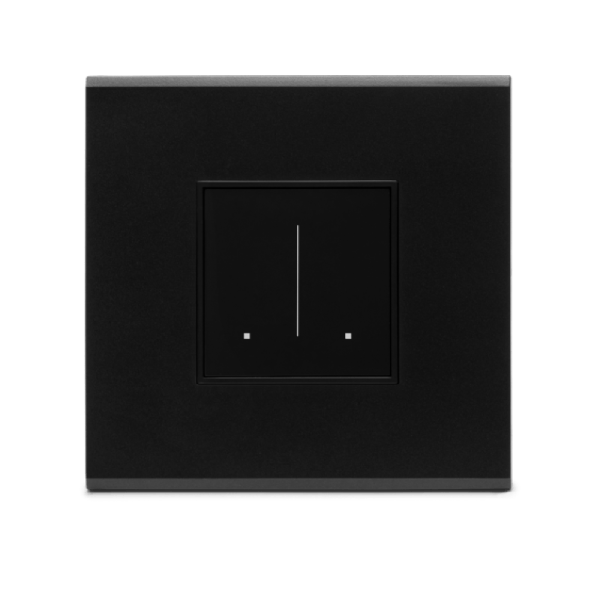

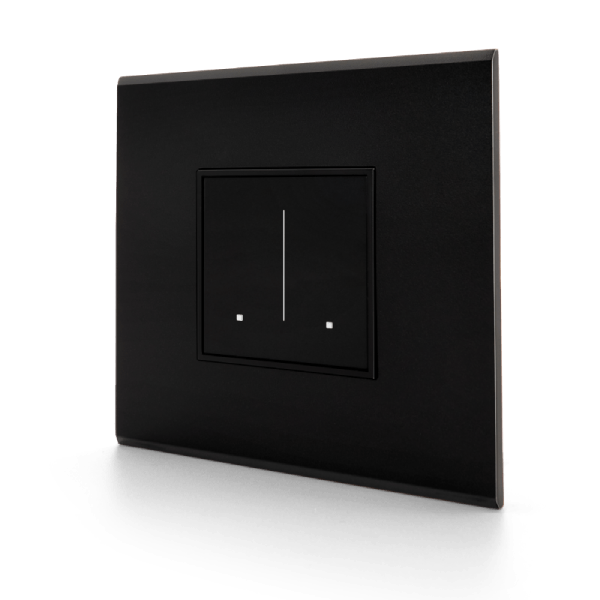

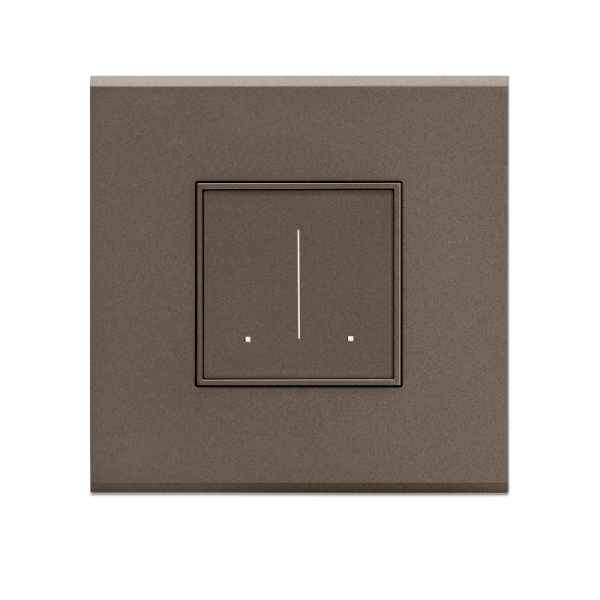

MOD-2 U

2 channel universal configurable automation module
Colour:
  • 2 module backbox
  • Width [Plate*]: 93 mm
  • Height [Plate*]: 90 mm
  • Depth [Module]: 42 mm standard
  • *Subject to plate finish
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • 2 configurable circuits
Dimming LED lamps with leading edge dimmable drivers <= 60W/VA
Switching Incandescent/LED/Halogen lights <= 100W/VA
Fans Regular ceiling and wall fans <= 100W/VA
Curtains Curtains/blinds x 1 motor <= 150W/VA
  • Automatic frequency tracking
  • Output fuse for short circuit protection
  • Temperature monitoring and overheat warning
  • UL-94V0 flame resistant polycarbonate enclosure
  • Front panel on/off and optional dimming controls
  • Pre-settable indicator LED brightness
  • Non-volatile memory for scenes, schedules, timers and last state storage
  • Notifications for lights/fans/loads that have been left on for more than a certain duration, or past a given time
Touch Direct operation via front panel touch switches
App iOS and Android phone control via the GO App
Scene Keypads Fixed multi-way control via in-wall GO Scene Keypads
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts

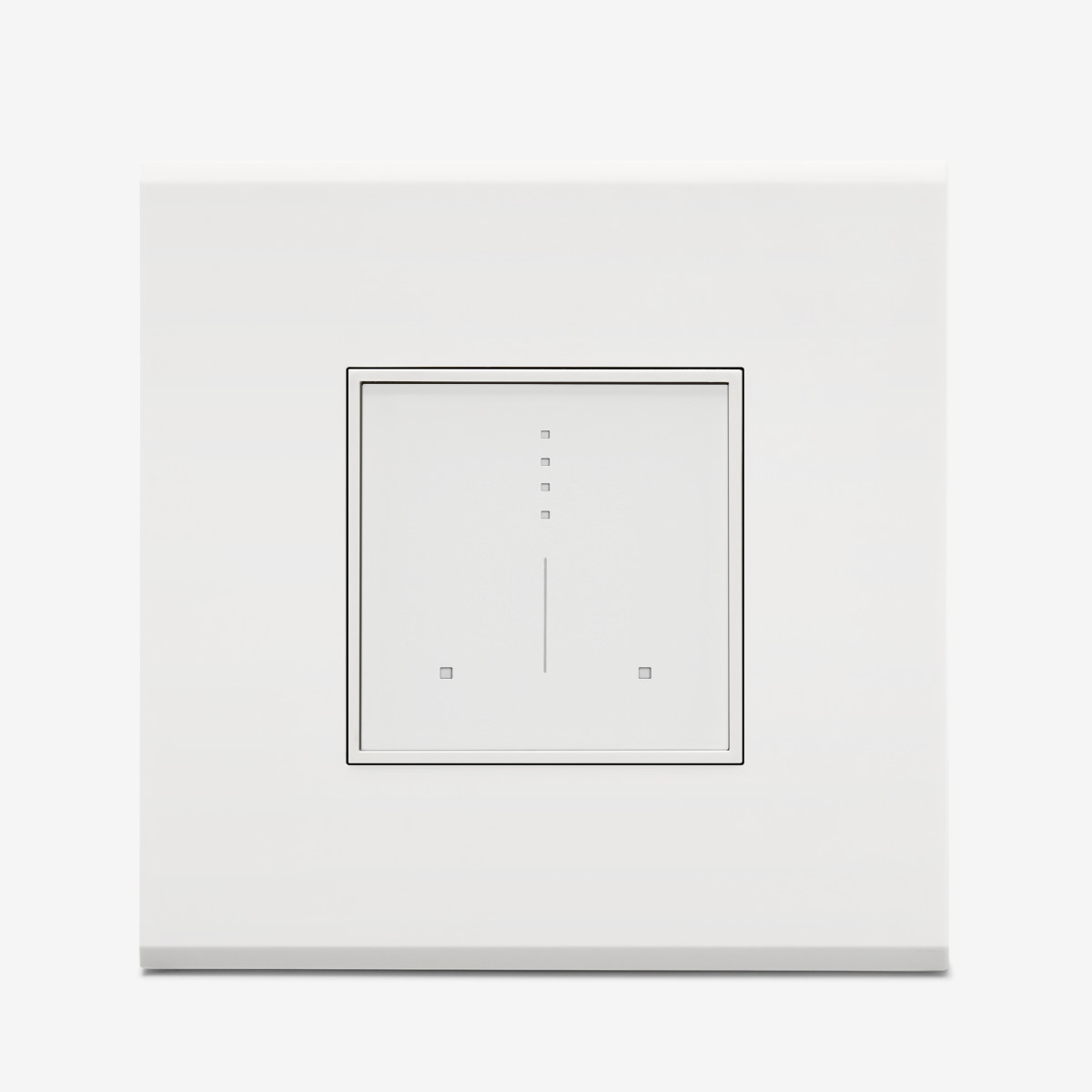

MOD-2 F MOD-2 F
MOD-2 F MOD-2 F
MOD-2 F MOD-2 F

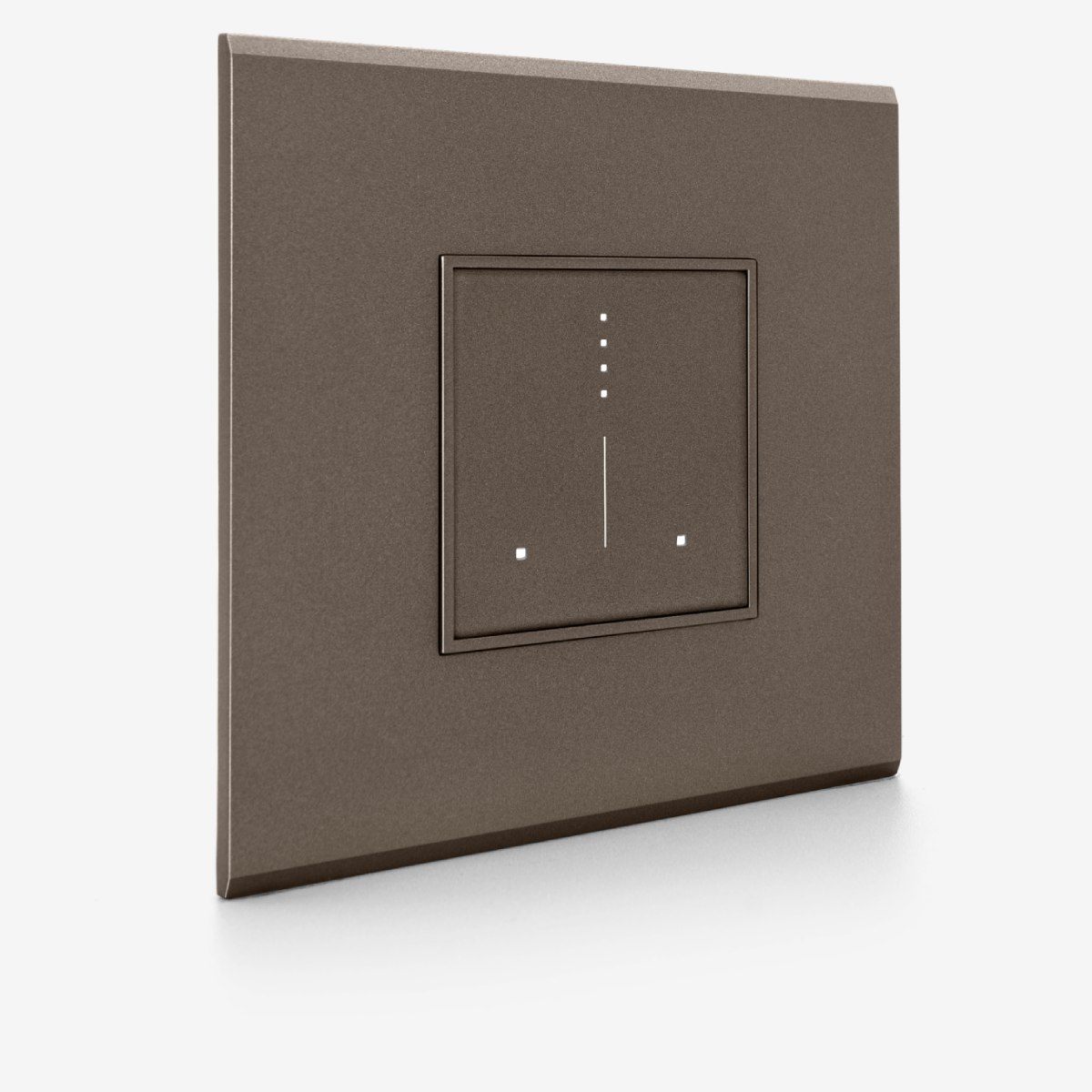

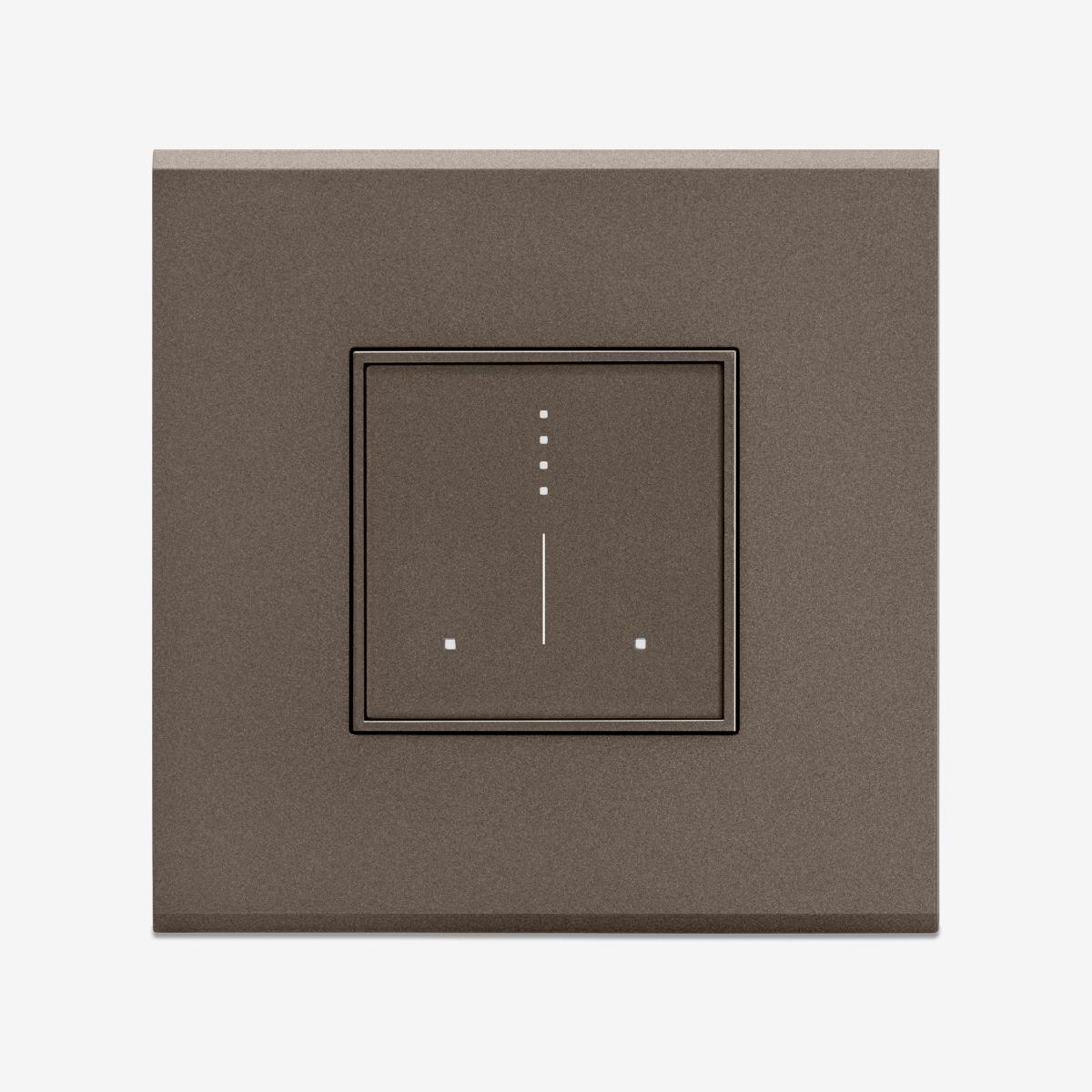

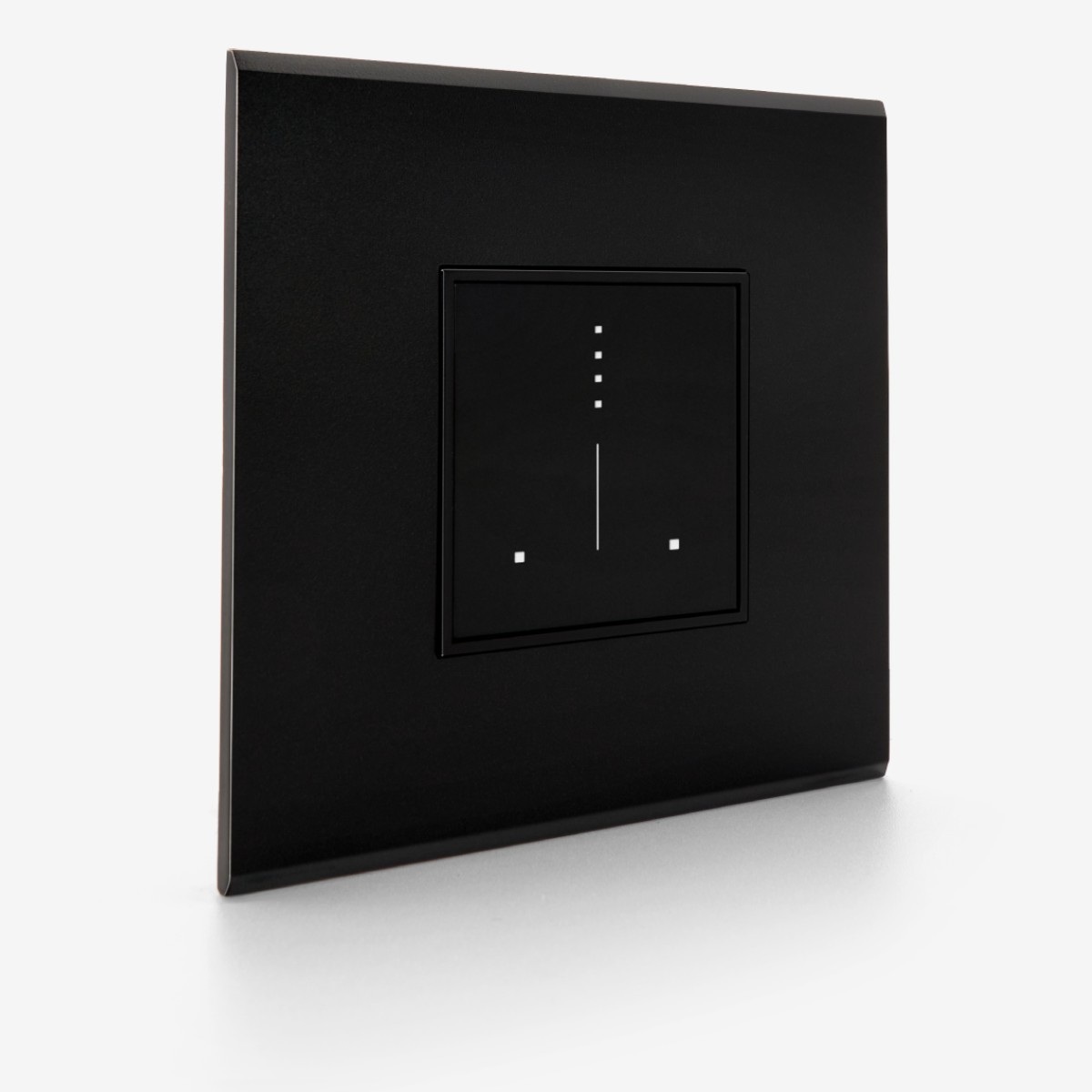

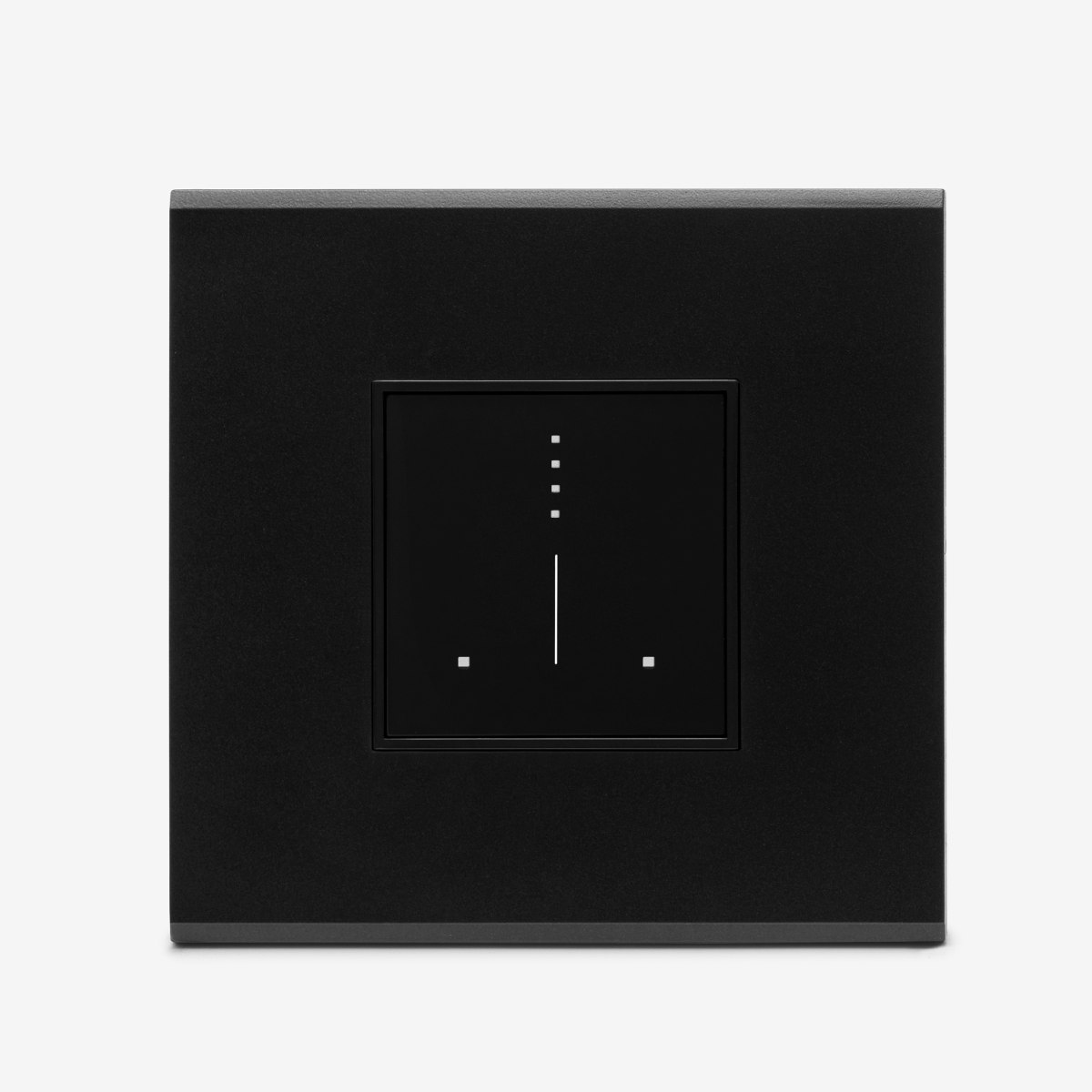

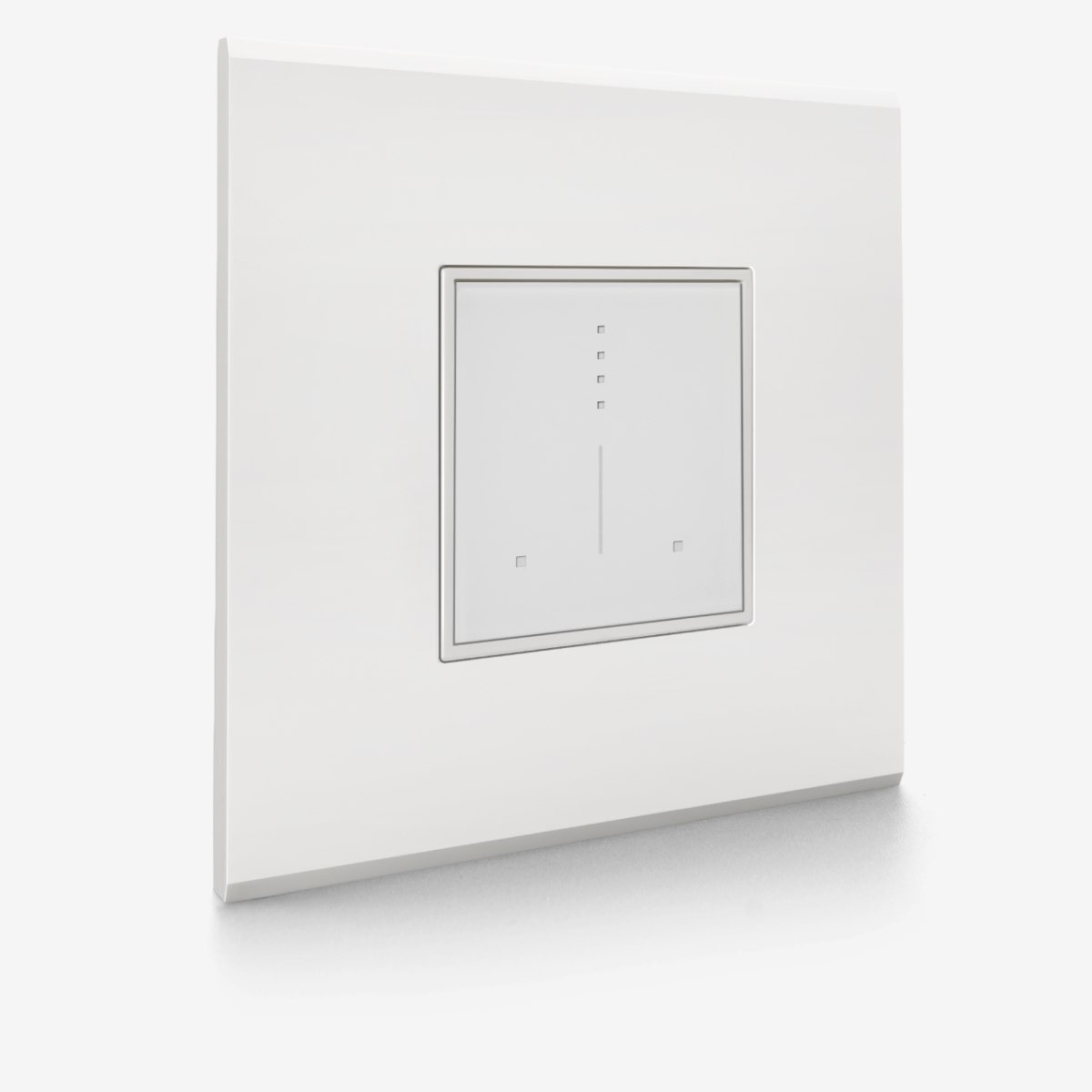

MOD-2 F

Single channel hum-free fan control module
Colour:
  • 2 module backbox
  • Width [Plate*]: 93 mm
  • Height [Plate*]: 90 mm
  • Depth [Module]: 42 mm standard
  • *Subject to plate finish
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • 1 circuit
Fans Regular ceiling and wall fans <= 150W/VA
  • Output fuse for short circuit protection
  • Temperature monitoring and overheat warning
  • Internal resettable thermal fuse for fan loads
  • UL-94V0 flame resistant polycarbonate enclosure
  • 5-step direct fan speed control
  • Fan speed level indicator LEDs
  • Pre-settable indicator LED brightness
  • Notifications for fans that have been left on for more than a certain duration, or past a given time
  • Inbuilt real time clock for scene scheduling
Touch Direct operation via front panel touch switches
App iOS and Android phone control via the GO App
Scene Keypads Fixed multi-way control via in-wall GO Scene Keypads
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts

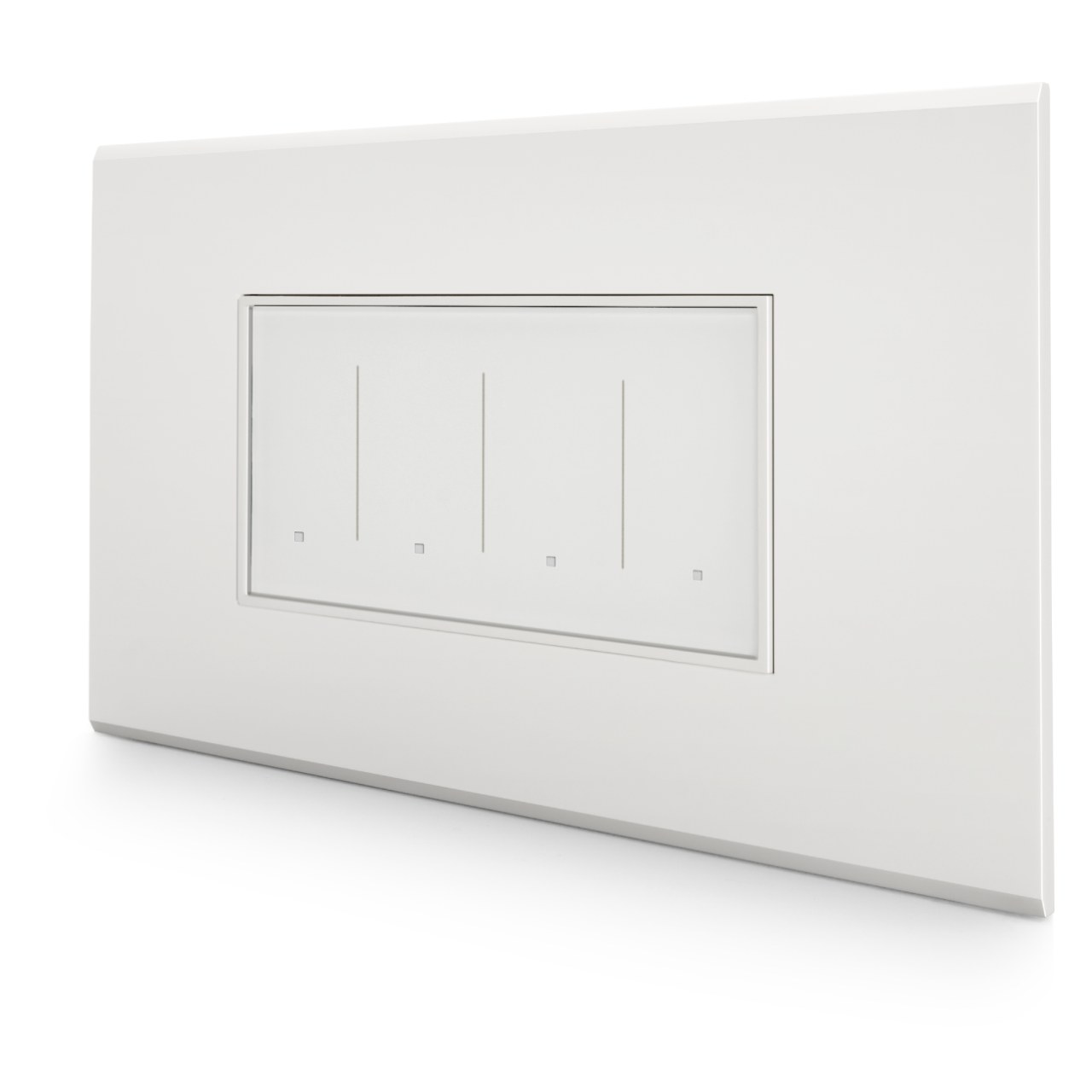

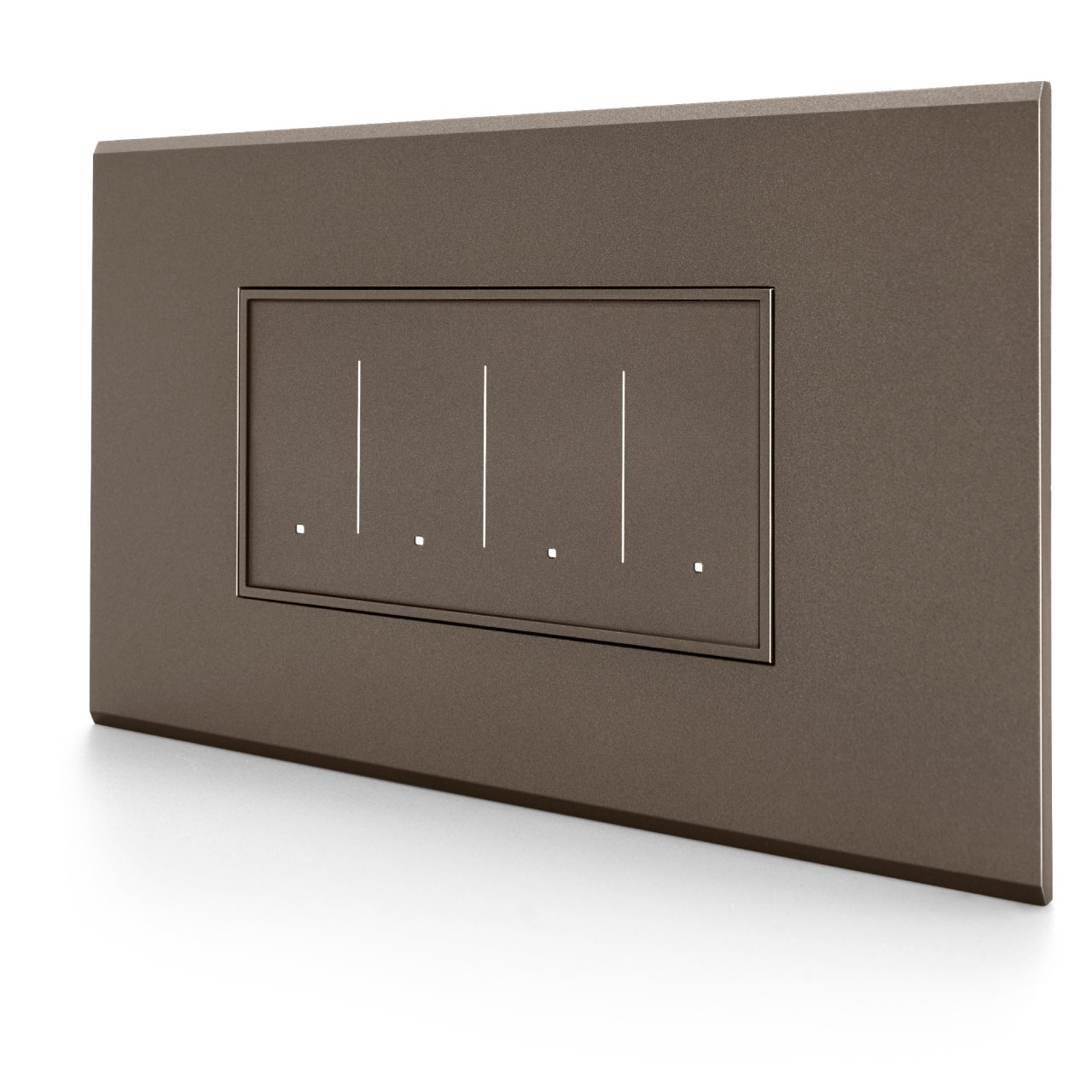

MOD-4 U MOD-4 U
MOD-4 U MOD-4 U
MOD-4 U MOD-4 U

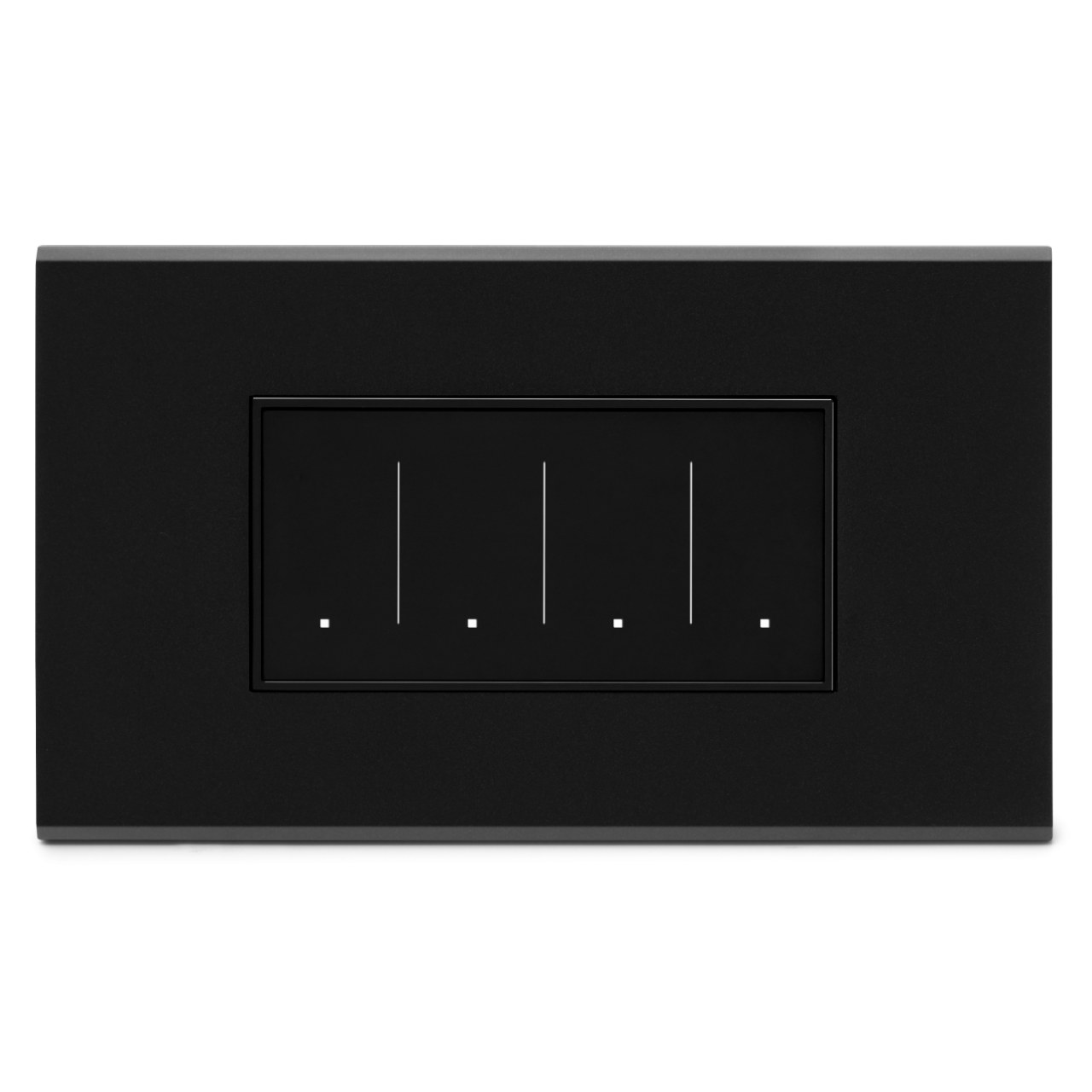

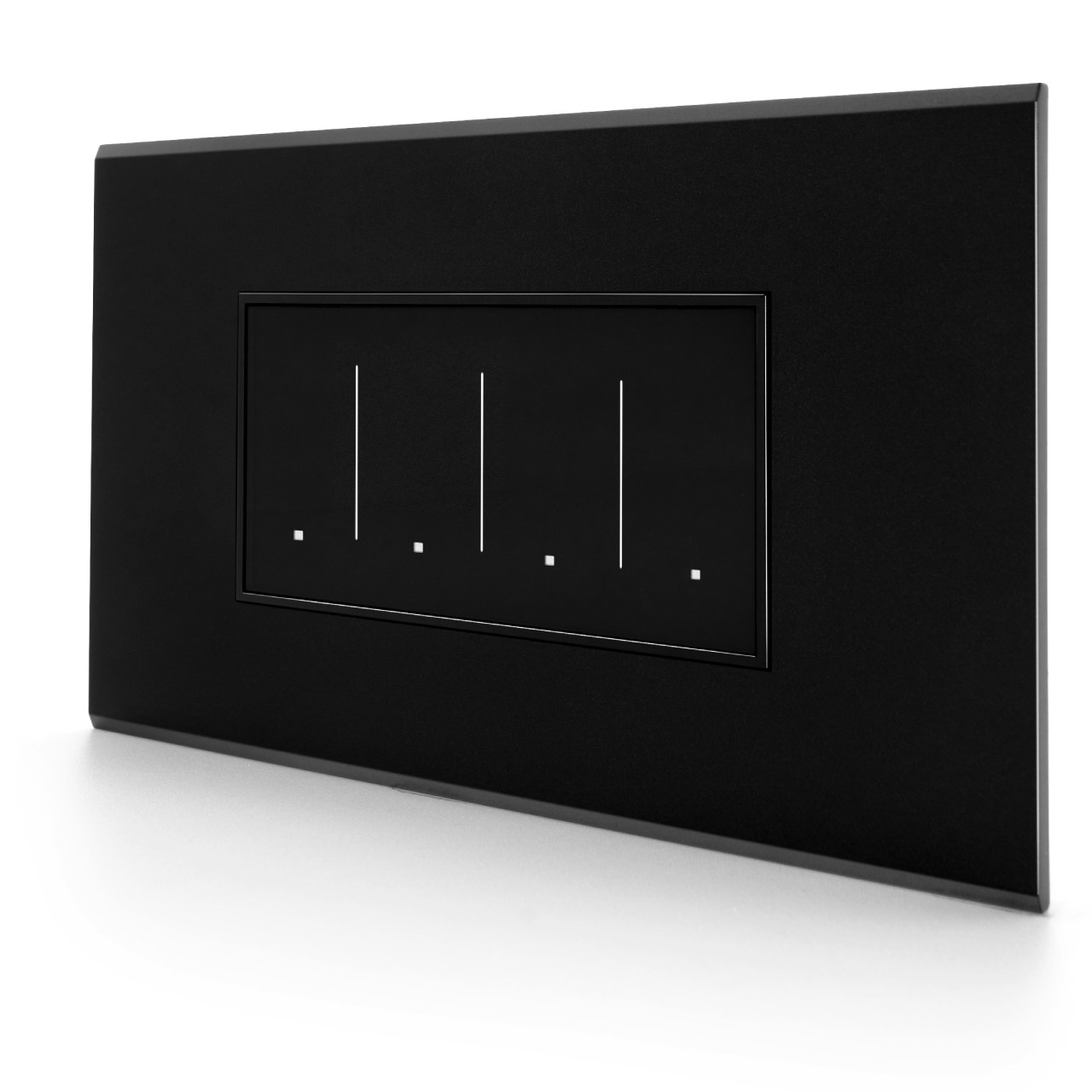

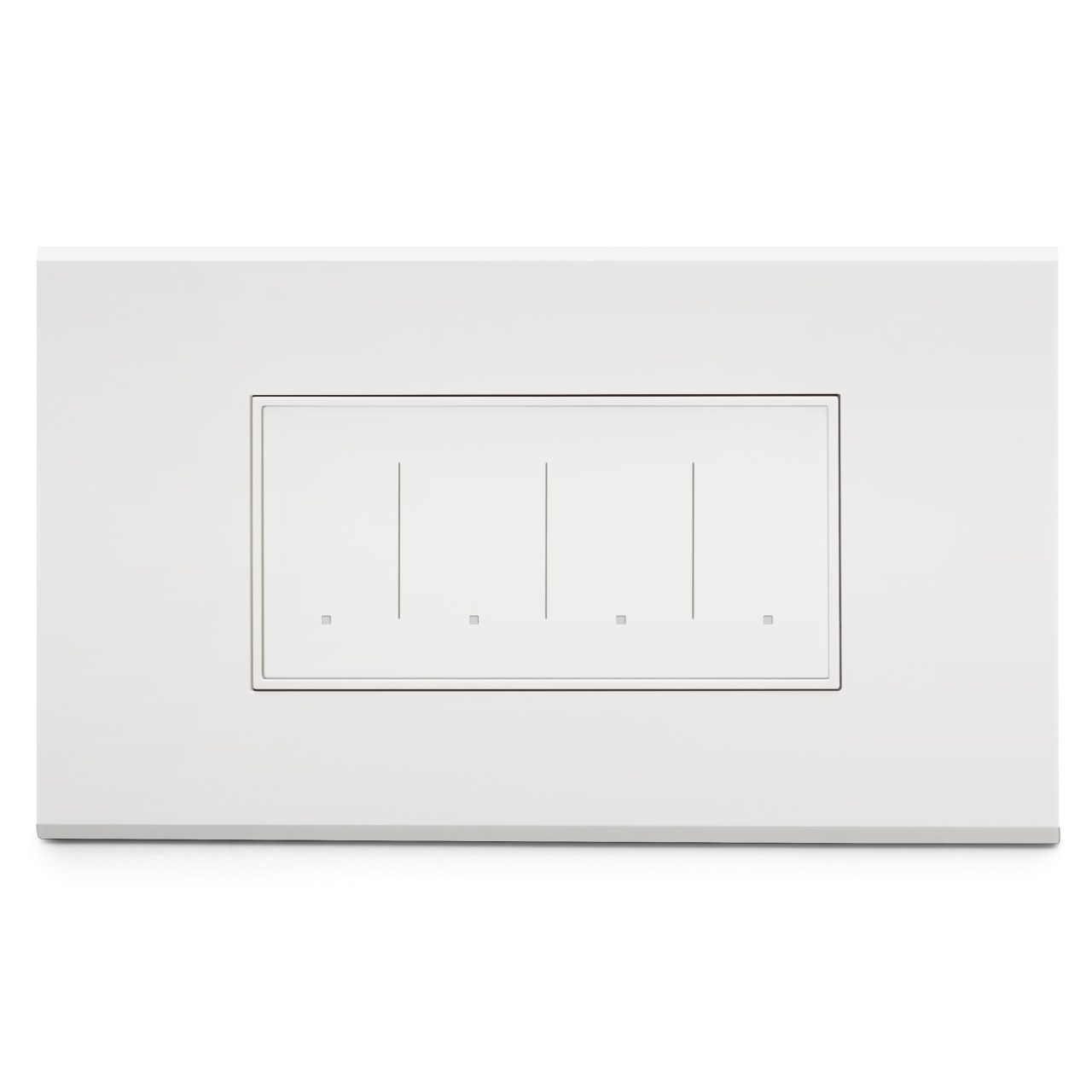

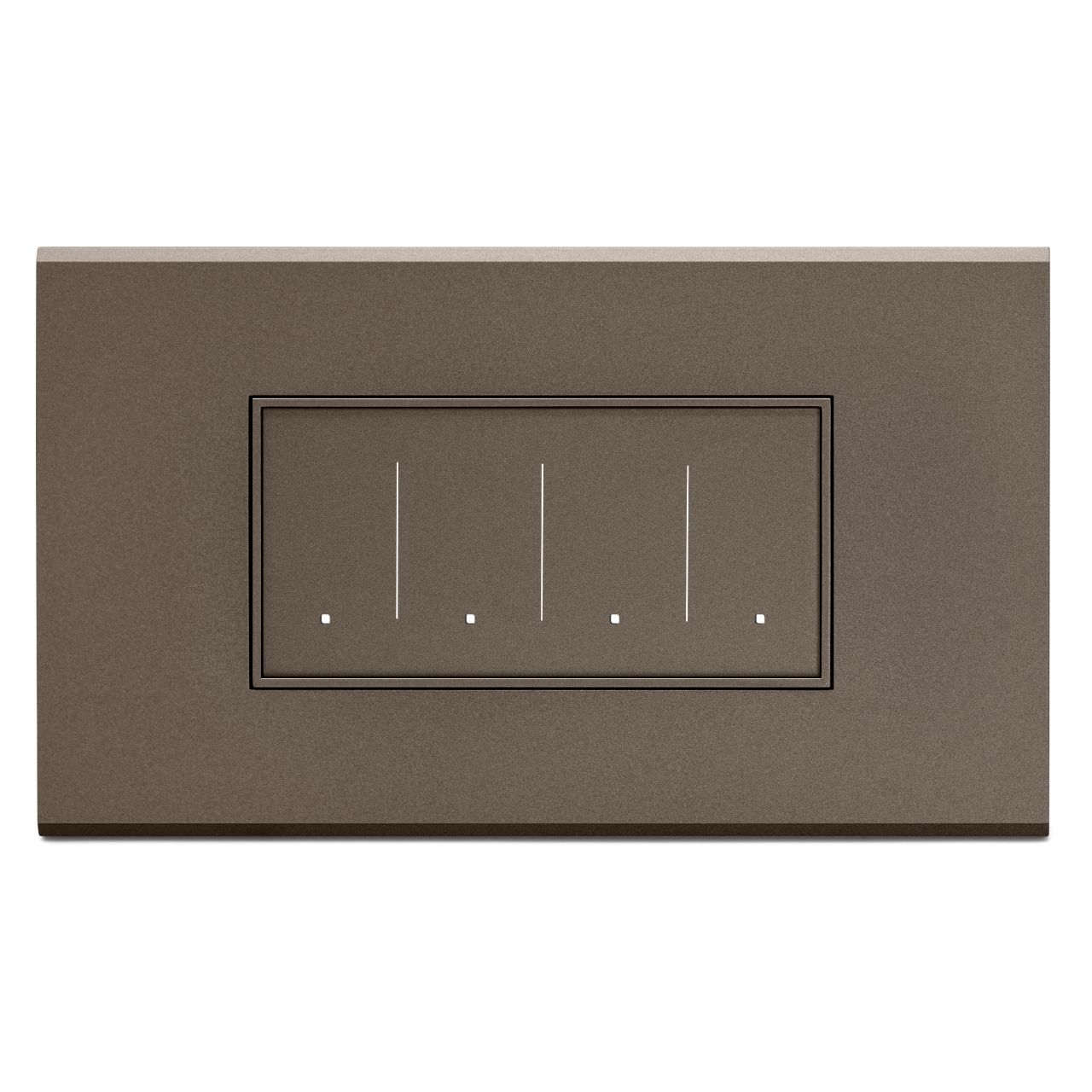

MOD-4 U

4 channel universal configurable automation module
Colour:
  • 4 module backbox
  • Width [Plate*]: 220 mm
  • Height [Plate*]: 90 mm
  • Depth [Module]: 42 mm standard
  • *Subject to plate finish
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • 4 configurable circuits
Dimming LED lamps with leading edge dimmable drivers <= 60W/VA
Switching Incandescent/LED/Halogen lights <= 100W/VA
Fans Regular ceiling and wall fans <= 100W/VA
Curtains Curtains/blinds x 1 motor <= 150W/VA
  • Automatic frequency tracking
  • Output fuse for short circuit protection
  • Temperature monitoring and overheat warning
  • UL-94V0 flame resistant polycarbonate enclosure
  • Front panel on/off and optional dimming controls
  • Pre-settable indicator LED brightness
  • Non-volatile memory for scenes, schedules, timers and last state storage
  • Notifications for lights/fans/loads that have been left on for more than a certain duration, or past a given time
Touch Direct operation via front panel touch switches
App iOS and Android phone control via the GO App
Scene Keypads Fixed multi-way control via in-wall GO Scene Keypads
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts

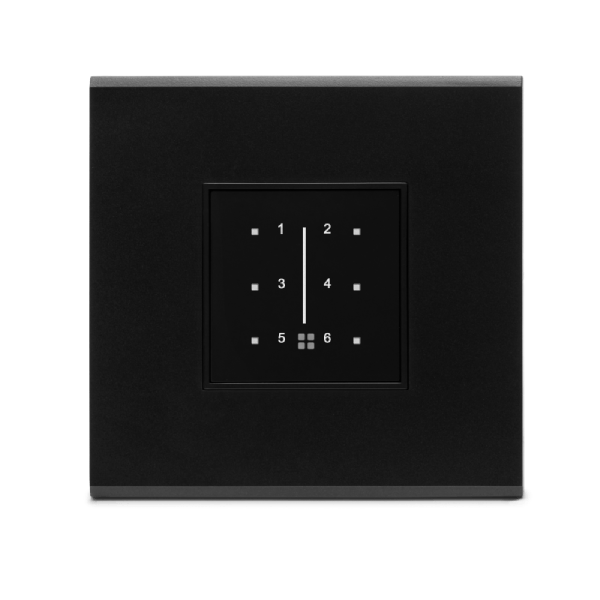

scn-6 scn-6
scn-6 scn-6
scn-6 scn-6

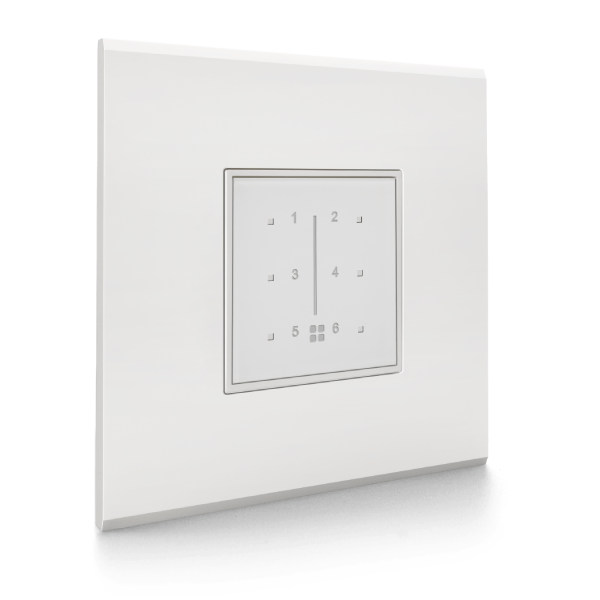

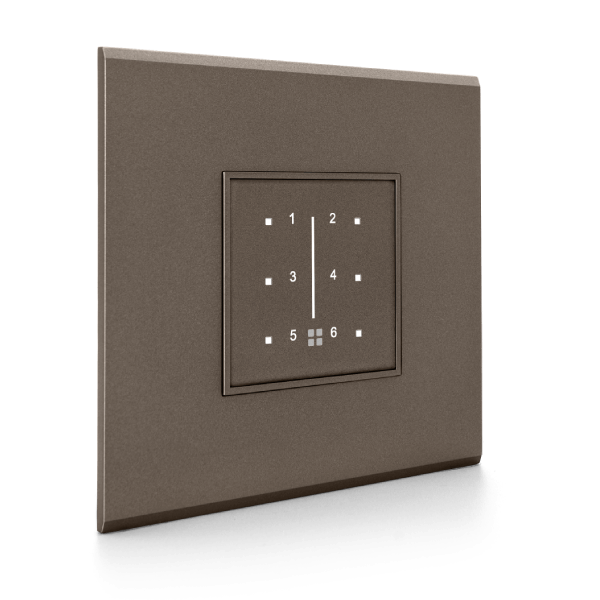

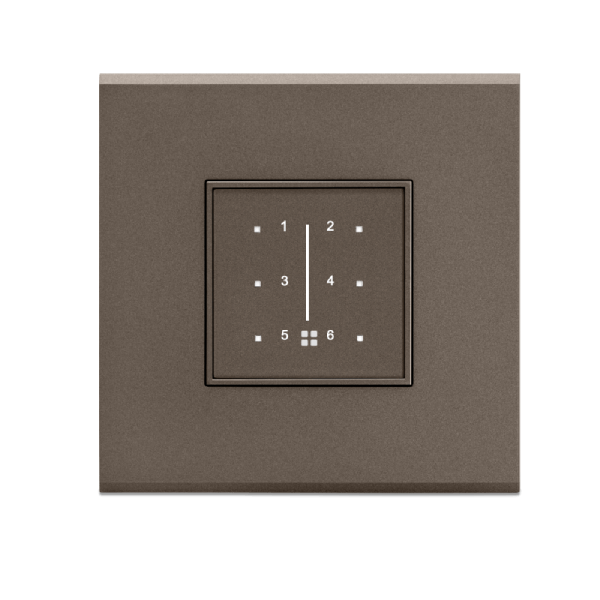

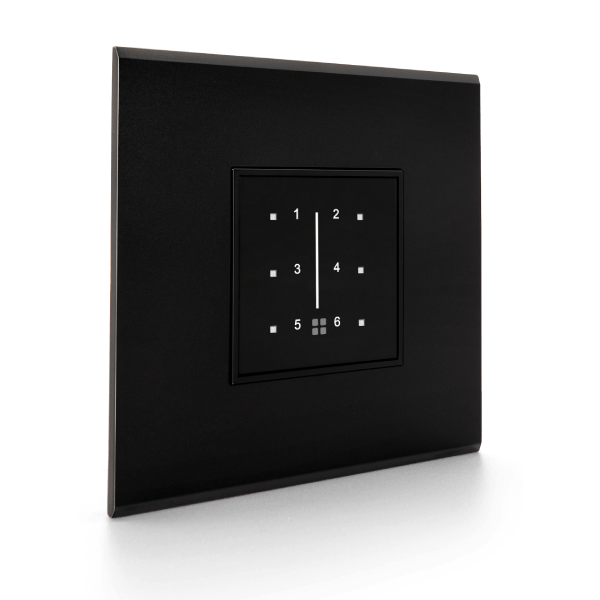

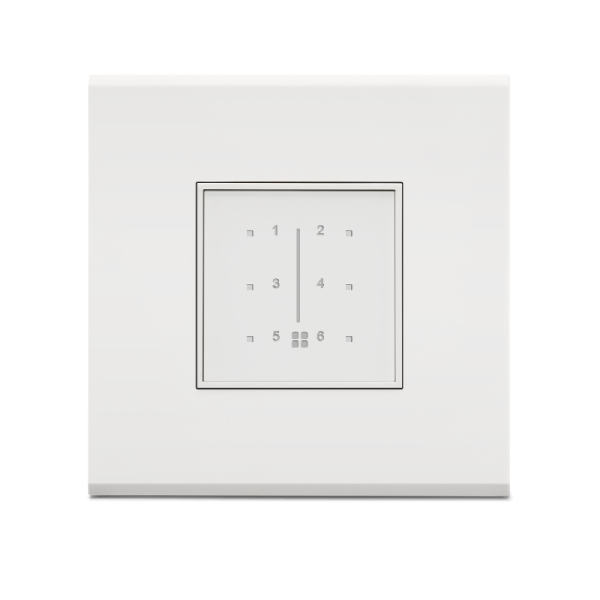

SCN 6

6 scene selector module
Colour:
  • 2 module backbox
  • Width [Plate*]: 93 mm
  • Height [Plate*]: 90 mm
  • Depth [Module]: 42 mm standard
  • *Subject to plate finish
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • Turn on and off up to 6 configurable scenes, sequences or timers
  • Allow 2 or multi-way control from entrance, bedside and additional locations
  • Enables simple master room control for users, staff etc.
  • Front panel scene selection
  • Pre-settable LED brightness indicators
  • Non-volatile memory for scenes, schedules, timers and last state storage
  • Scene selection and current status update through:
Touch Direct operation via front panel touch switches
App iOS and Android phone control via the GO App
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts

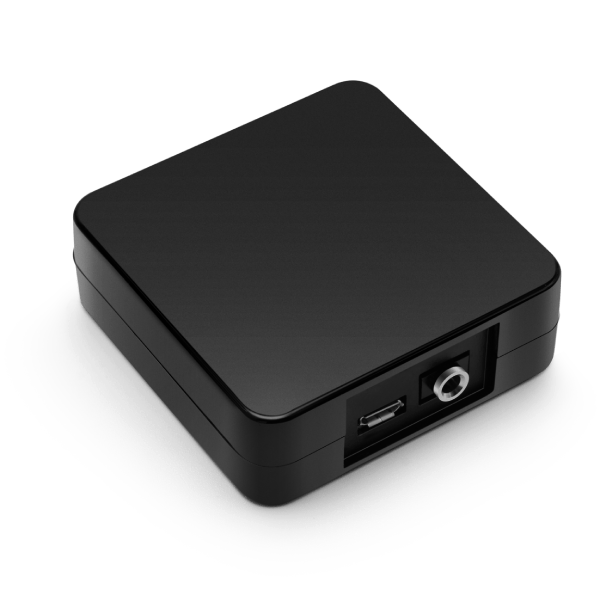

irb irb

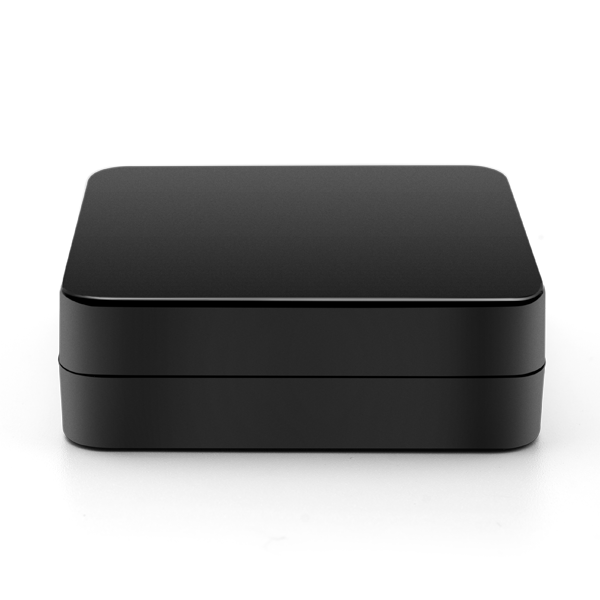

IRB

Wide angle IR blaster for AV/Media/HVAC devices
  • 2 module table top/wall mounting enclosure
  • Width: 50 mm
  • Height: 40 mm
  • Depth: 20 mm
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • 20Khz – 60Khz IR command emission
  • Online app database
  • Configurable repeat and delay settings
  • 1 x 3.5 mm socket for external wired IR emitter
  • 1 x internal high power omnidirectional phased IR emitter array
  • DC 5V 1A via USB connector and supplied adapter
  • Up to 6 devices can be controlled with large command size and function count
  • Discrete AC power and fan speed control*
  • Discrete AV equipment power commands*
  • Triggers IR commands for given scenes, schedules and timers
App iOS and Android phone control via the GO App
Scene Keypads Fixed multi-way control via in-wall GO Scene Keypads
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts
grb grb

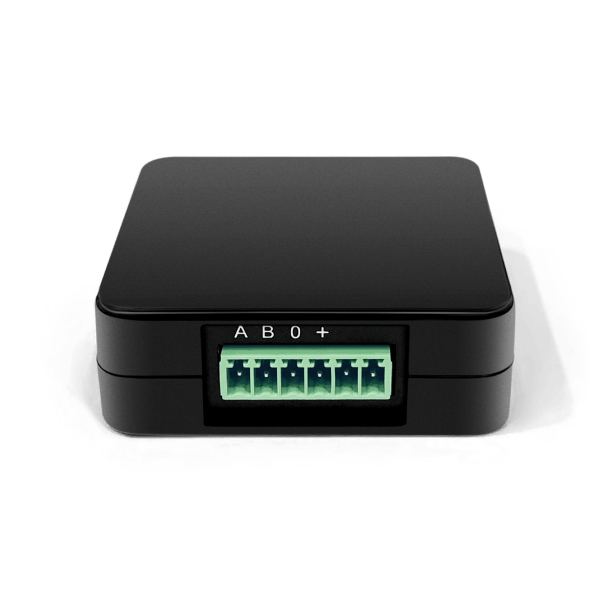

GRB

GO Raynet Bridge for integration of the GO app with Raynet Bus devices
  • 2 module table top/wall mounting enclosure
  • Width: 50 mm
  • Height: 40 mm
  • Depth: 20 mm
  • Wi-Fi 802.11 b/g/n AES 256 secured
  • Wi-Fi SSID strength and diagnostics
  • GO Cloud access using secure TLS 1.2
  • Firmware update via secure OTA
  • Third party control and large volume deployment via an additional hub
  • Raynet RS-485 port
  • Raynet Bus
  • External 12v 1A adapter recommended
  • 36 channels of Raynet control
  • Channel direct commands for control of relays / dimmers / fans / curtain motors
  • Scene turn on/off commands
  • Use Raynet keypads to trigger GO scenes
  • Inbuilt scheduler and timer used in conjunction with the GO app
  • No PC required to use up to 36 channels of Raynet devices
App iOS and Android phone control via the GO App
Scene Keypads Fixed multi-way control via in-wall GO Scene Keypads
Voice Control Alexa GO Voice Skill
Google Home GO Voice Action
IFTTT GO by Raylogic Service
Siri Shortcuts
xpr xpr

MPX

Power expander for MOD-2 U / MOD-4 U. Increase the dimming capacity of the MOD channels from 60w to 500w. Enable control of high-power chandeliers, LED strip light drivers etc. with MOD products
